Discover the Orbsmart R82, the ultimate 4K HDR Media Player for home cinema enthusiasts. Developed for uncompromising playback of your local movie collection, it supports UHD Blu-ray ISOs (incl. Menu), Dolby Vision, and Dolby Atmos. With features like automatic frame rate matching, Wi-Fi 6, and an external SATA port, it is the benchmark for your media library.
R82 Top Features
- ✔Maximum Format Variety: Plays UHD/BD Blu-ray ISOs (with Menu), 3D MVC, and almost any video codec (AV1, HEVC, etc.).
- ✔Perfect 4K Image: Support for dynamic Dolby Vision & HDR10+ for breathtaking picture quality.
- ✔Lossless HD Audio: Passthrough of all formats like Dolby Atmos & DTS:X to your AV receiver.
- ✔Auto Frame Rate Switching: Stutter-free playback of movies (e.g., 23.976 Hz).
- ✔Strong Connectivity: Wi-Fi 6, Gigabit LAN, USB 3.0, and an external SATA port for hard drives (up to 16TB).
UHD Blu-ray ISO & Menu Support
The R82 Realtek chipset plays 1:1 copies of your UHD and BD Blu-rays (BDMV/ISO) including full menu navigation. Enjoy your digital collection just like from the physical disc, with full format and codec support (MKV, MOV, AV1, HEVC, etc.).
Breathtaking 4K with Dolby Vision
The R82 sets standards in picture quality. It supports dynamic HDR10+ and Dolby Vision (VS10). These technologies optimize brightness, colors, and contrasts scene by scene, getting the absolute maximum picture quality out of your TV.
Lossless HD Cinema Sound
The R82 passes all HD audio standards losslessly to your AV receiver (Passthrough). Experience immersive 3D sound from DTS:X and Dolby Atmos exactly as the filmmakers intended. Audiophile music formats are also perfectly reproduced.
Connectivity for Pros
Besides Wi-Fi 6 and Bluetooth 5.2, all important ports are available: USB 3.0 for fast transfers, Gigabit LAN for a stable NAS connection, and an external SATA port for hard drives with up to 16TB capacity. An optical S/PDIF rounds off the package.

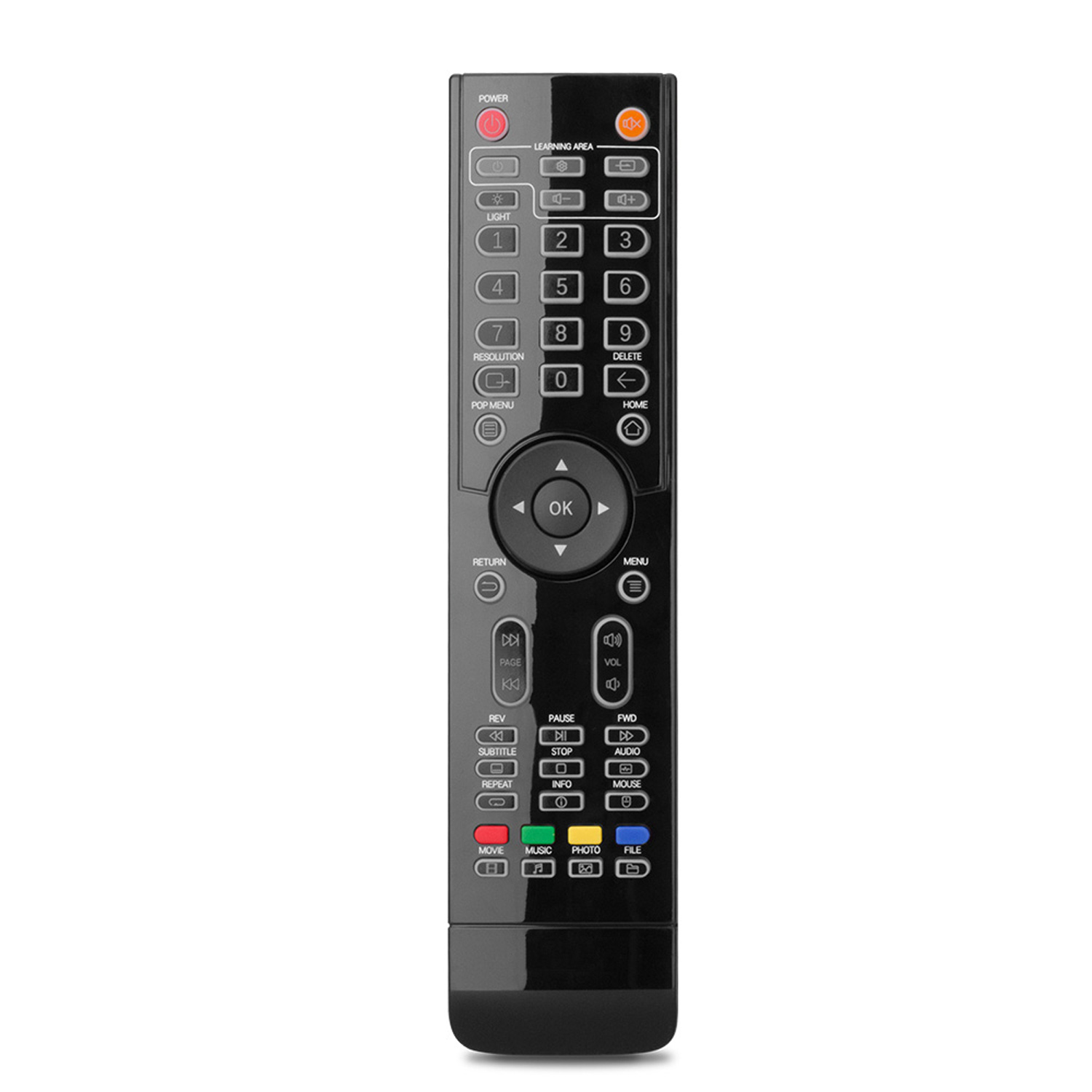

Backlit Premium Remote
The high-quality remote control features double-sided backlighting that activates automatically upon movement – perfect for dark home cinemas. You can also program buttons from your TV or AV receiver to control everything with one hand.
The R82: Who is it the ideal solution for?
The R82 is the first choice for home cinema enthusiasts and movie collectors who want to experience their digital media library from hard drives or NAS in the best possible quality. It is the reference for format variety and lossless playback.
Looking for a device primarily for streaming services like Netflix & Co.? Take a look at our specialized Streaming Players.
PRO Features for Commercial Use
The R82 is also a robust solution for professional 24/7 continuous operation and offers special features for commercial environments such as digital signage or advertising displays:
- ✔Autostart Function: Automatically powers on the device when connected to power.
- ✔Automatic Playback: Starts a video or playlist directly after boot.
- ✔Loop Function: Plays content reliably in an endless loop.

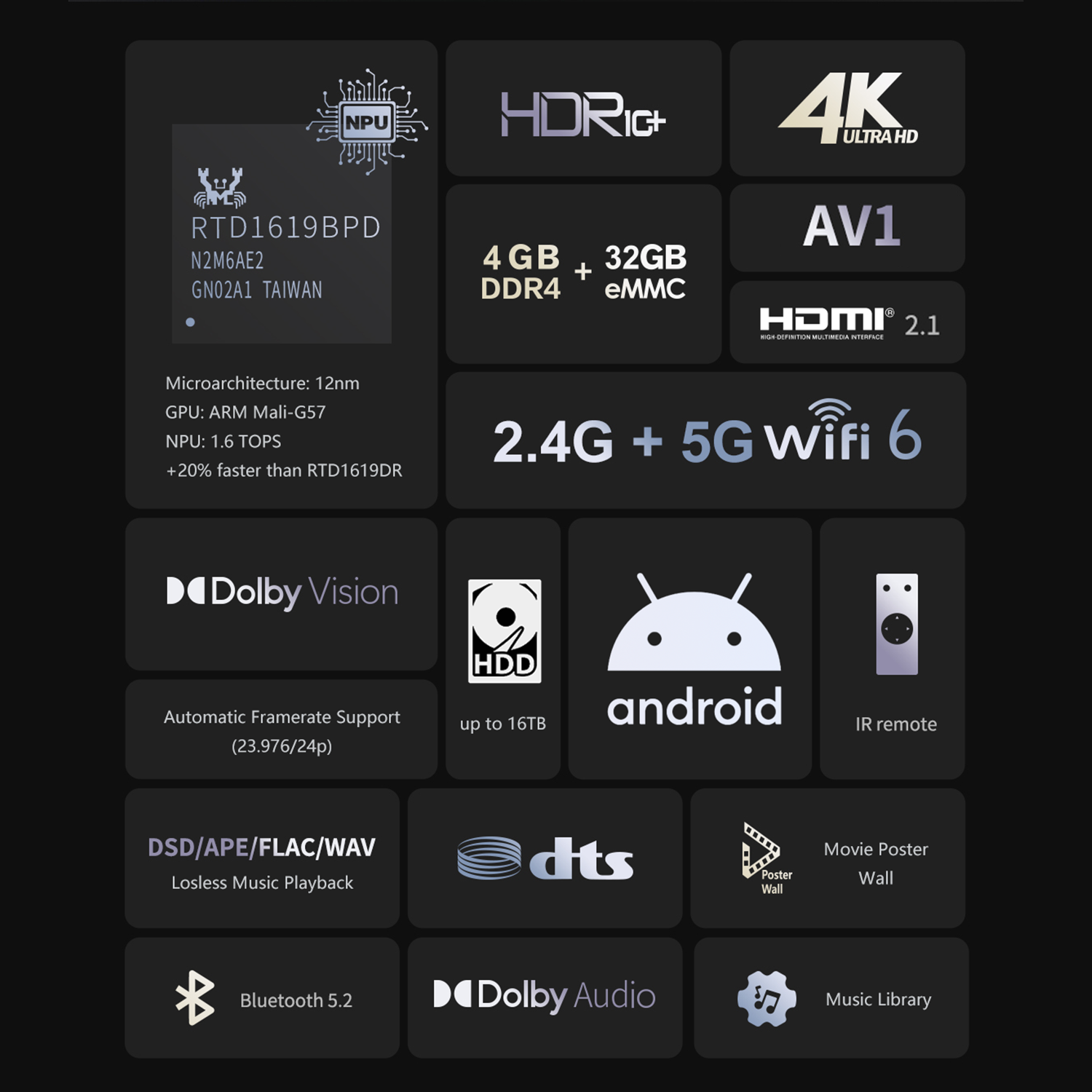

Detailed Technical Specifications of the R82
| Operating System | Android 11 OS |
| CPU | Realtek RTD1619BPD Quadcore Cortex-A55 |
| GPU | ARM Mali-G57 |
| RAM | 4GB DDR4-RAM |
| Internal Storage | 32GB eMMC |
| Network | WIFI 6 (Dualband 2.4/5GHz), Bluetooth 5.2, Gigabit LAN |

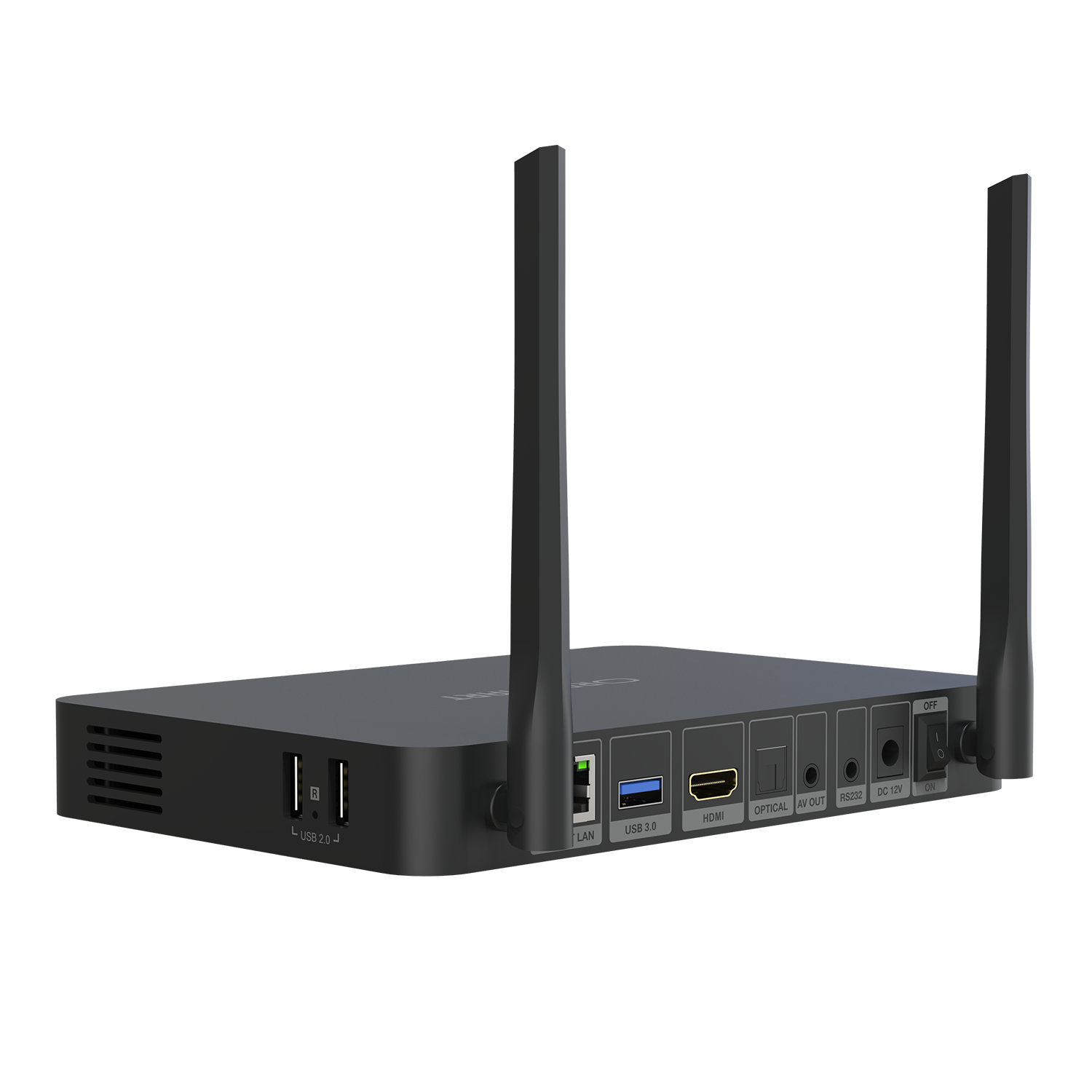

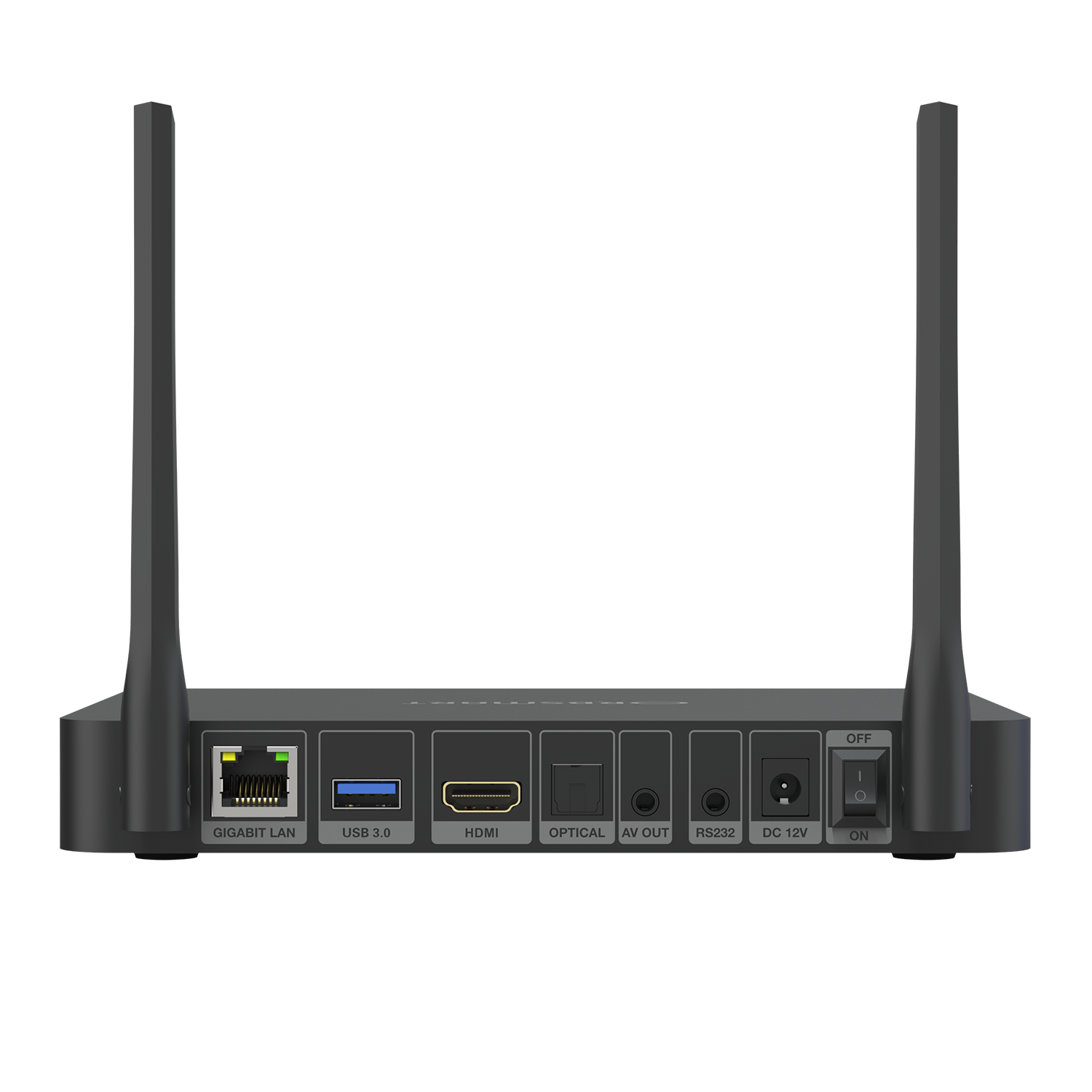

| Ports | 1x HDMI 2.1, 1x SATA 3.0 (external), 1x USB 3.0, 2x USB 2.0, 1x SPDIF (Optical), 1x AV-Out, 1x RS232 |
| Video Output | HDMI 2.1 up to 4K@60Hz (Dolby Vision, HDR10+, AV1) |
| Audio Output | HDMI, Optical (SPDIF), AV |
| HD Audio Passthrough | Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD MA, etc. |
| Dimensions / Weight | 190 x 130 x 30 mm / approx. 450g |
| Box Contents | Orbsmart R82, Backlit Remote, Power Adapter, HDMI Cable, SATA Cable, Manual |
Frequently Asked Questions (FAQ) about the R82
What is the main difference to a normal streaming player like the GX1?
A media player like the R82 is specialized in playing your own movie and music files from hard drives or network in the best possible quality. It supports more formats (e.g., Blu-ray ISOs). A streaming player like the GX1 is primarily optimized and certified for using online streaming apps (Netflix, Disney+, etc.).
Can I connect an internal or external hard drive?

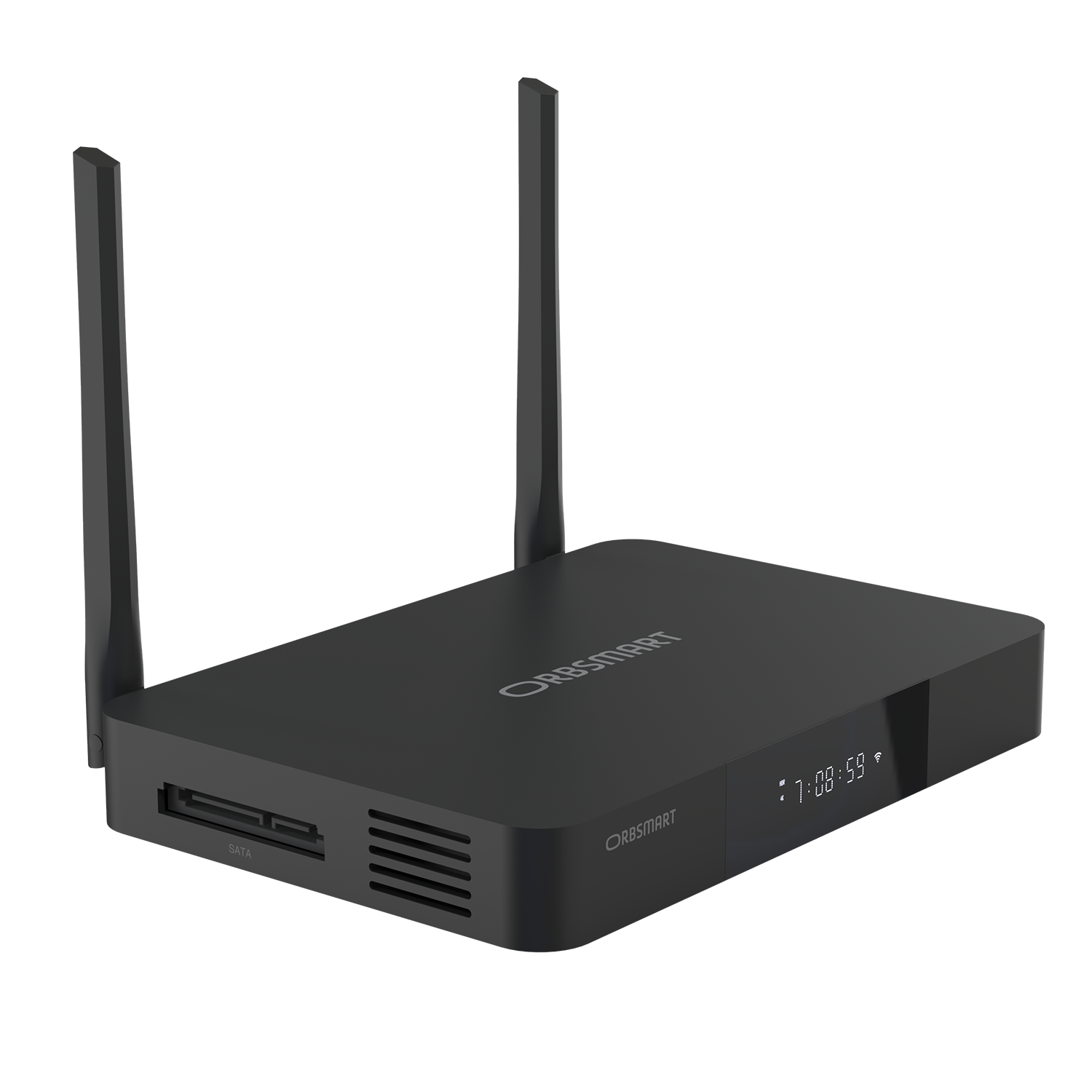

The R82 features an external SATA 3.0 port, to which you can directly connect a 2.5 or 3.5 inch hard drive (up to 16TB). Additionally, three USB ports (1x USB 3.0) are available for further external hard drives or USB sticks.
Are UHD Blu-ray ISO files with menus supported?
Yes, absolutely. This is one of the core features of the R82. It plays UHD and BD Blu-ray ISO files as well as BDMV folders fully with menu navigation, just like a physical Blu-ray player.
Which HD audio formats are passed through to an AV receiver?
The R82 supports passthrough of almost all HD audio formats, including DTS, DTS-HD, DTS:X, Dolby Digital, Dolby Digital Plus, and Dolby Atmos. So you enjoy lossless cinema sound.
Are streaming apps like Netflix or Prime Video fully usable?
No, only very limited or not compatible. The R82 is specialized in local media playback. For an optimal streaming experience, we recommend our G-series models: GD1, GD2, G1, and GX1.
Can the R82 be used as a digital signage player (e.g., for advertising)?
Yes, the R82 is perfectly suited for commercial use thanks to its PRO features. It supports functions such as Autostart on power supply and automatic playback of videos or playlists in an endless loop (Loop function).
