Say goodbye to cable clutter! Discover the Orbsmart Nano, an ultra-compact Wireless HDMI Extender Set. Transmit HDMI signals (video & audio) from your laptop, PC, or player wirelessly in Full-HD to a TV or projector. Thanks to Plug & Play, setup is done in seconds – ideal for meeting rooms, presentations, or a tidy living room.
Nano Top Features
- ✔Wireless 1080p Transmission: Transmits Full-HD (1080p@60Hz) signals reliably and without loss of quality.
- ✔Plug & Play Installation: Simply plug in the transmitter & receiver. No software, drivers, or Wi-Fi passwords needed.
- ✔Up to 30m Range: Stable 5GHz wireless transmission for distances up to 30 meters with line of sight.
- ✔Ultra-compact Design: The small sticks are unobtrusive and ideal for laptops and travel.
- ✔Power via USB: Flexible power supply directly via the USB port of your TV or laptop.
True Plug & Play

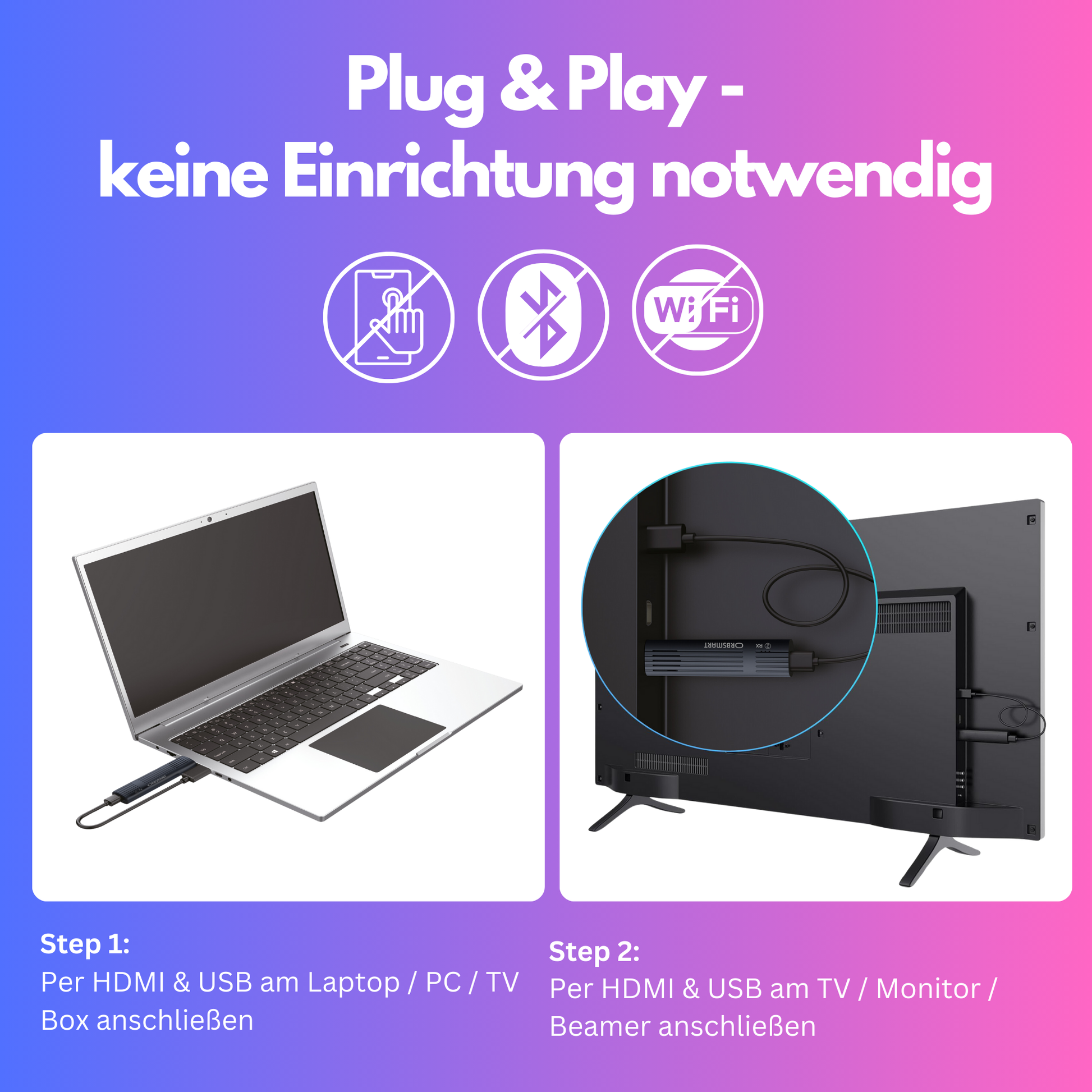

It doesn't get any easier. Connect the transmitter (TX) to the HDMI source (e.g., laptop) and the receiver (RX) to the TV or projector. Transmitter and receiver connect automatically within seconds. No software, no app, and no Wi-Fi login required.
Up to 30 Meters Range
The Orbsmart Nano uses a stable 5GHz wireless signal to reliably transmit Full-HD content over a distance of up to 30 meters (with clear line of sight). Ideal for large living rooms or meeting rooms where cable runs would be too long.
Compact & Portable

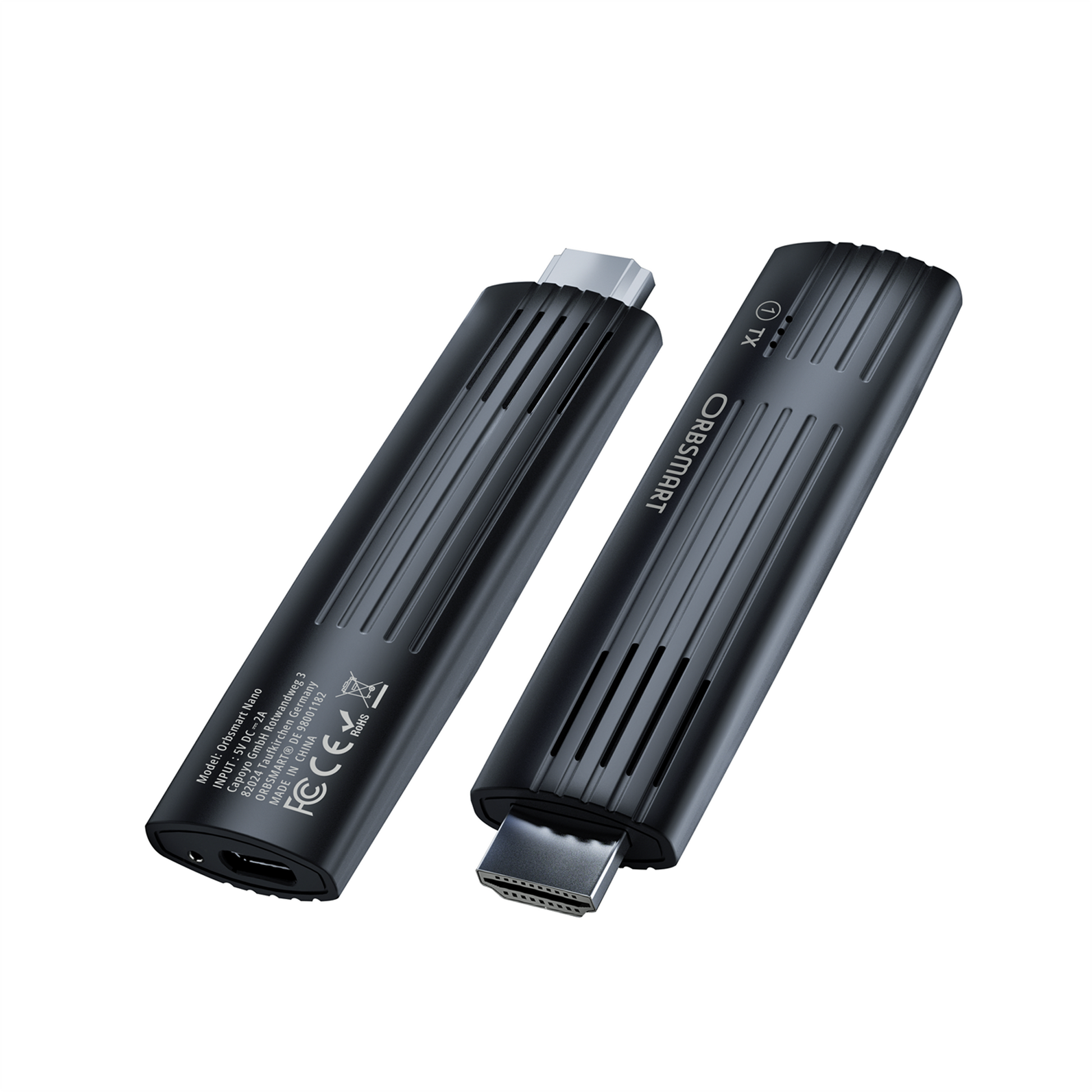

With its ultra-compact stick design, the Orbsmart Nano is extremely unobtrusive. The transmitter fits perfectly on any laptop without blocking ports, and the receiver simply disappears behind the TV. The entire set is so small that it fits in any laptop bag.
Flexible Power Supply
Transmitter and receiver are powered via a modern USB-C connection. You can simply use a free USB port on your TV or laptop for this. Alternatively, you can use (or if needed) a standard USB power adapter.
The Nano: Who is it the ideal solution for?
The Nano is the perfect choice for anyone needing a fast and uncomplicated wireless connection in Full-HD. Ideal for meeting rooms (to connect laptops to projectors), training rooms, in the home office, or in the living room to avoid cable clutter.
Do you need 4K resolution and apps like Netflix & Co.? Take a look at our specialized Streaming Players.
Detailed Technical Specifications of the Nano
| Model | Orbsmart Nano Wireless HDMI Extender |
| Transmission Type | 5GHz Wireless Transmission (Point-to-Point) |
| Max. Resolution | Full HD (1920x1080) @ 60Hz |
| Max. Range | Up to 30 Meters (with clear line of sight) |
| Ports (Transmitter) | 1x HDMI, 1x USB-C (Power) |
| Ports (Receiver) | 1x HDMI, 1x USB-C (Power) |
| Latency | Low (under 200ms) |
| Audio Transmission | PCM Stereo |
| Dimensions (TX/RX) | approx. 83 x 32 x 10 mm |

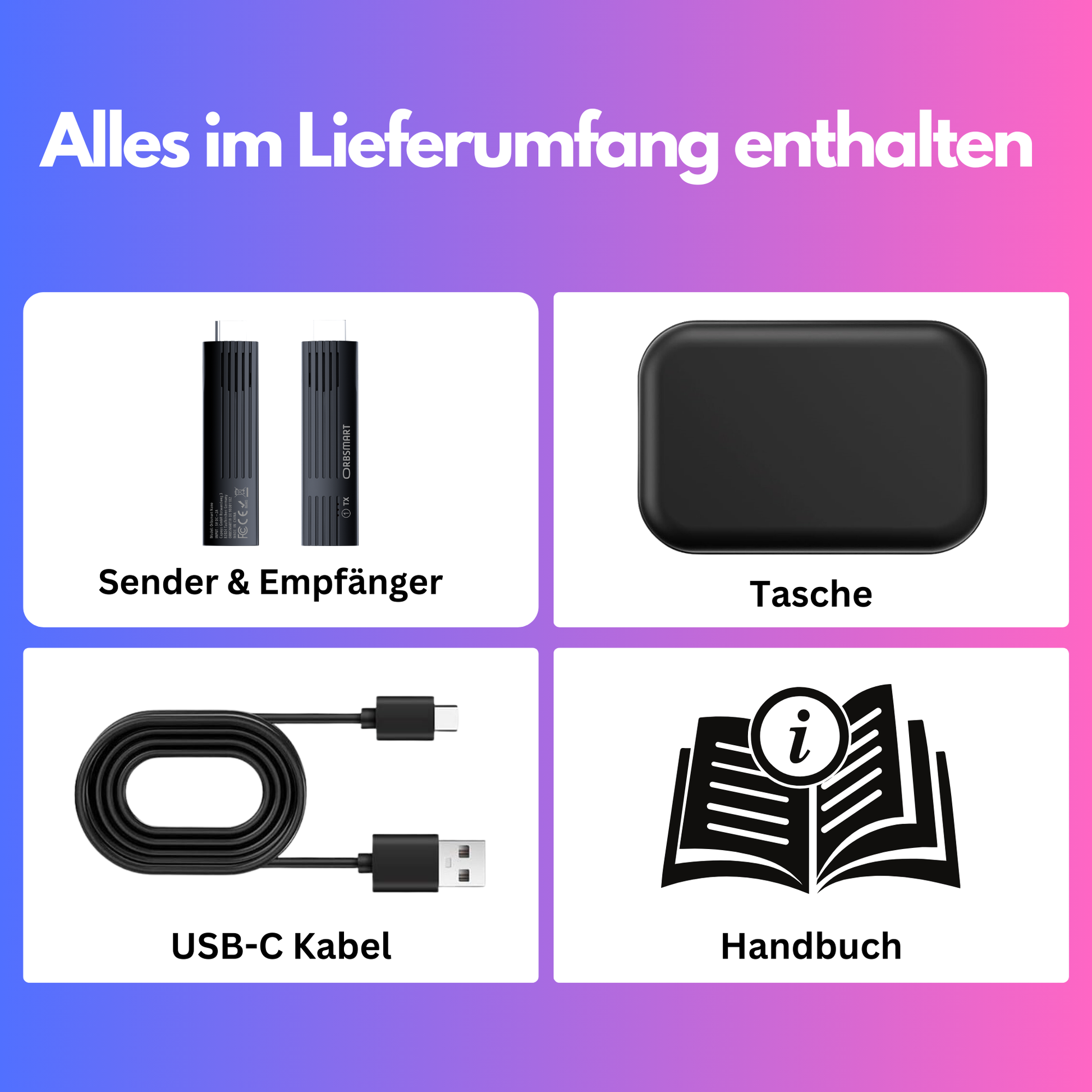

| Box Contents | 1x Transmitter (TX), 1x Receiver (RX), 2x USB-C Cables, Case, Manual |
Frequently Asked Questions (FAQ) about the Nano
What resolution does the Orbsmart Nano support?
The Orbsmart Nano is optimized for the wireless transmission of Full HD signals (1920x1080 pixels) at up to 60 frames per second (1080p@60Hz). Higher resolutions like 4K are not supported.
What is the actual range?
The maximum range of 30 meters is achieved with a clear line of sight between transmitter and receiver. Walls, ceilings, or other obstacles can reduce the range. For best results, transmitter and receiver should ideally be placed in the same room.
Is there a delay (latency) during transmission?
Yes, as with any wireless transmission, there is a minimal delay (latency) of under 200ms. For presentations, videos, or normal work, this is barely noticeable. However, for very fast, competitive gaming, a wired connection is still the better choice.
Do I need to install drivers or software?
No, the Orbsmart Nano works on the Plug & Play principle. Simply connect the transmitter and receiver to the respective devices and supply them with power. The connection is established automatically; no software installation or configuration is necessary.
Can I use multiple transmitters or receivers simultaneously?
Yes, up to 8 receivers are theoretically possible.
