Discover the Orbsmart AW-16L, the fanless performance powerhouse among Mini PCs. Equipped with a powerful Intel N150 processor and Windows 11 Pro, it masters demanding tasks in the office, home office, or professional environments. Absolutely silent, approved for 24/7 continuous operation, and ideal for multi-monitor setups – the AW-16L is the ultimate solution for power users.
Top Features of the AW-16L
- ✔
Intel N150 Performance: Noticeably more power for demanding applications and smooth multitasking.
- ✔
Absolutely Silent: Perfectly suited for noise-sensitive environments thanks to sophisticated passive cooling.
- ✔
Triple-Display Ready: Connect up to three 4K monitors simultaneously for maximum productivity (2x HDMI, 1x USB-C).
- ✔
Certified for 24/7 Operation: Designed for reliable round-the-clock use in professional scenarios.
- ✔
Modern Connectivity: Equipped with Wi-Fi 6, Gigabit LAN, fast USB 3.2 Gen 2, and a full-featured USB-C port.
Performance Plus with Intel N150
The AW-16L utilizes the powerful Intel N150 Quad-Core processor. Benefit from noticeably more processing power for demanding office software, data-intensive tasks, and consistently smooth work – ideal for power users and professional demands.

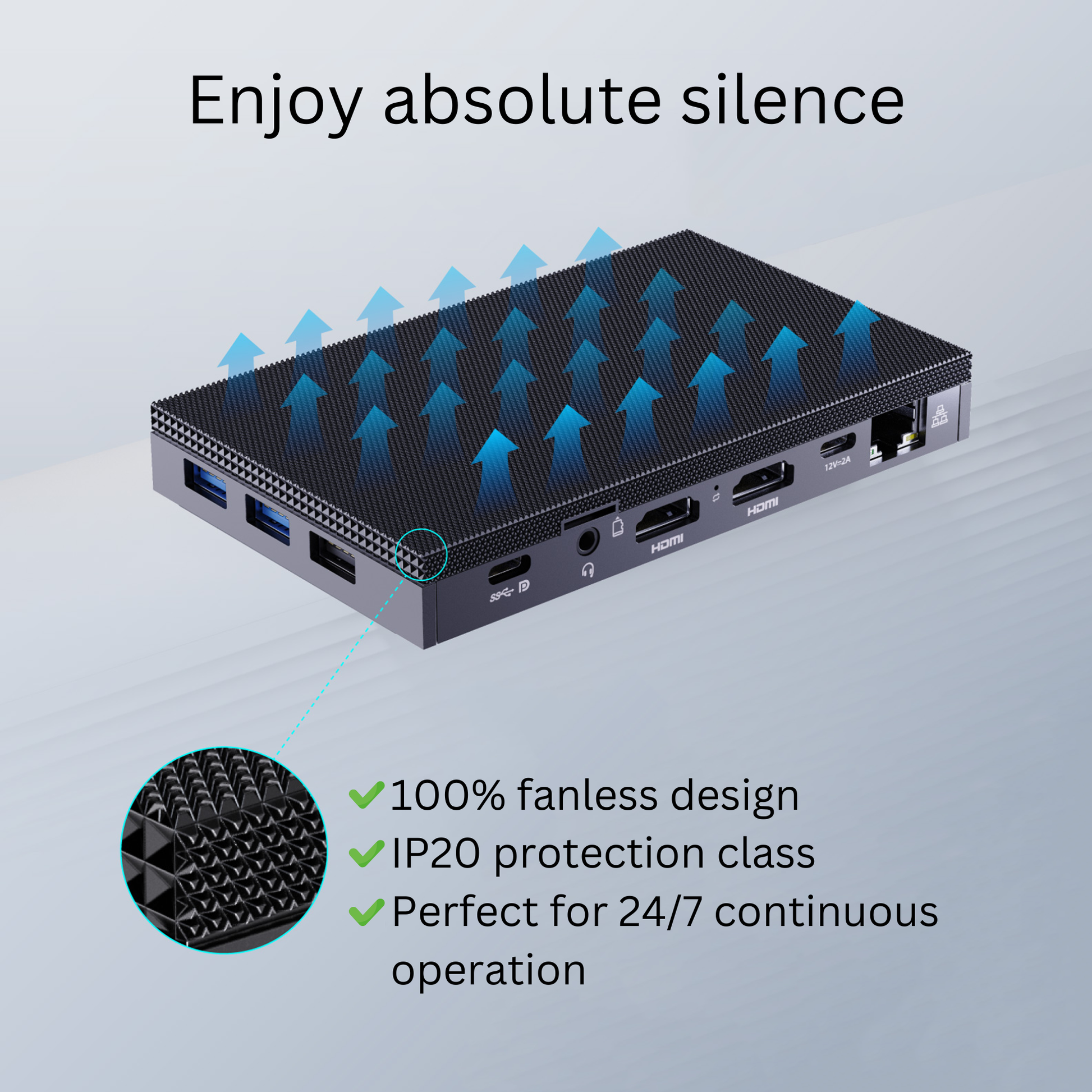

Absolutely Silent Operation
Focused work without distractions. The Orbsmart AW-16L features a sophisticated passive cooling system without mechanical fans. This guarantees completely silent operation at all times, regardless of the load – perfect for offices, recording studios, or the living room.

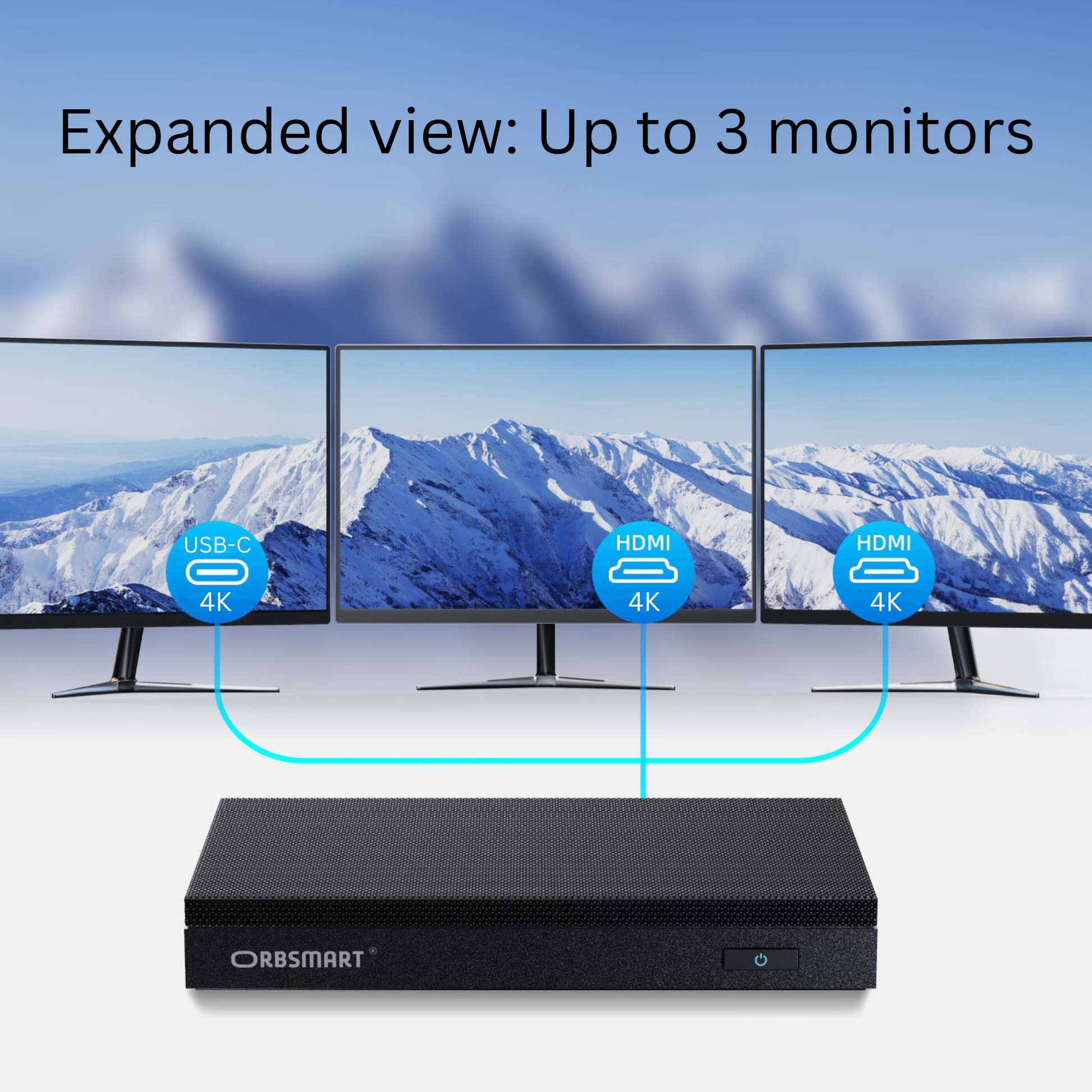

Productivity on Three Monitors
Expand your digital workspace. The AW-16L supports connecting up to three 4K monitors simultaneously. Use the two HDMI 2.0 ports and the full-featured USB-C 3.2 port with DisplayPort functionality for maximum overview and efficient multitasking.
Modern Connections & Fast Network
The AW-16L is perfectly connected. Benefit from the latest Wi-Fi 6 for lightning-fast WLAN, Bluetooth 5.2, and a stable Gigabit LAN port. Fast USB 3.2 Gen 2 ports and the versatile USB-C port (including Power Delivery & DisplayPort) complete the future-proof setup.
Ready for Professional Use
Designed for reliability: The AW-16L is approved for 24/7 continuous operation and supports important business features like Autostart on power supply, Wake-on-LAN (WOL), and PXE Boot directly in the BIOS/UEFI. Ideal for digital signage, POS systems, or as an industrial PC.
The AW-16L: Who is it the ideal solution for?
The AW-16L is the top choice for power users in the home office who seek maximum performance for their multi-monitor setup, as well as for commercial customers needing a reliable and high-performing PC for 24/7 continuous operation as a digital signage player, industrial controller, or POS system.
Need more connection options like VGA or DisplayPort? Take a look at the Orbsmart AW-15.
Detailed Technical Specifications of the Orbsmart AW-16L
| Operating System | Windows 11 Professional (64-bit) |
| CPU | Quadcore Intel "Twin Lake" N150 (@0.80 GHz / Burst freq: 3.60 GHz) |
| GPU | Intel UHD Graphics XE |
| RAM | 8GB or 16GB LPDDR4X (soldered) |
| Internal Storage | 256GB eMMC or 512GB NVMe SSD |
| Storage Expansion | 1x M.2 NVMe Slot (2280) up to 4TB (only with eMMC variant), 1x microSD Slot |
| Cooling | Passive (fanless) |
| Network | Gigabit-LAN (Realtek), WIFI 6 (Intel AX201), Bluetooth 5.2 |
| Video Outputs | 2x HDMI 2.0 (up to 4K@60Hz), 1x USB-C 3.2 (DP 1.4, up to 4K@60Hz) |
| Audio Output | HDMI, USB-C, 3.5mm Jack |

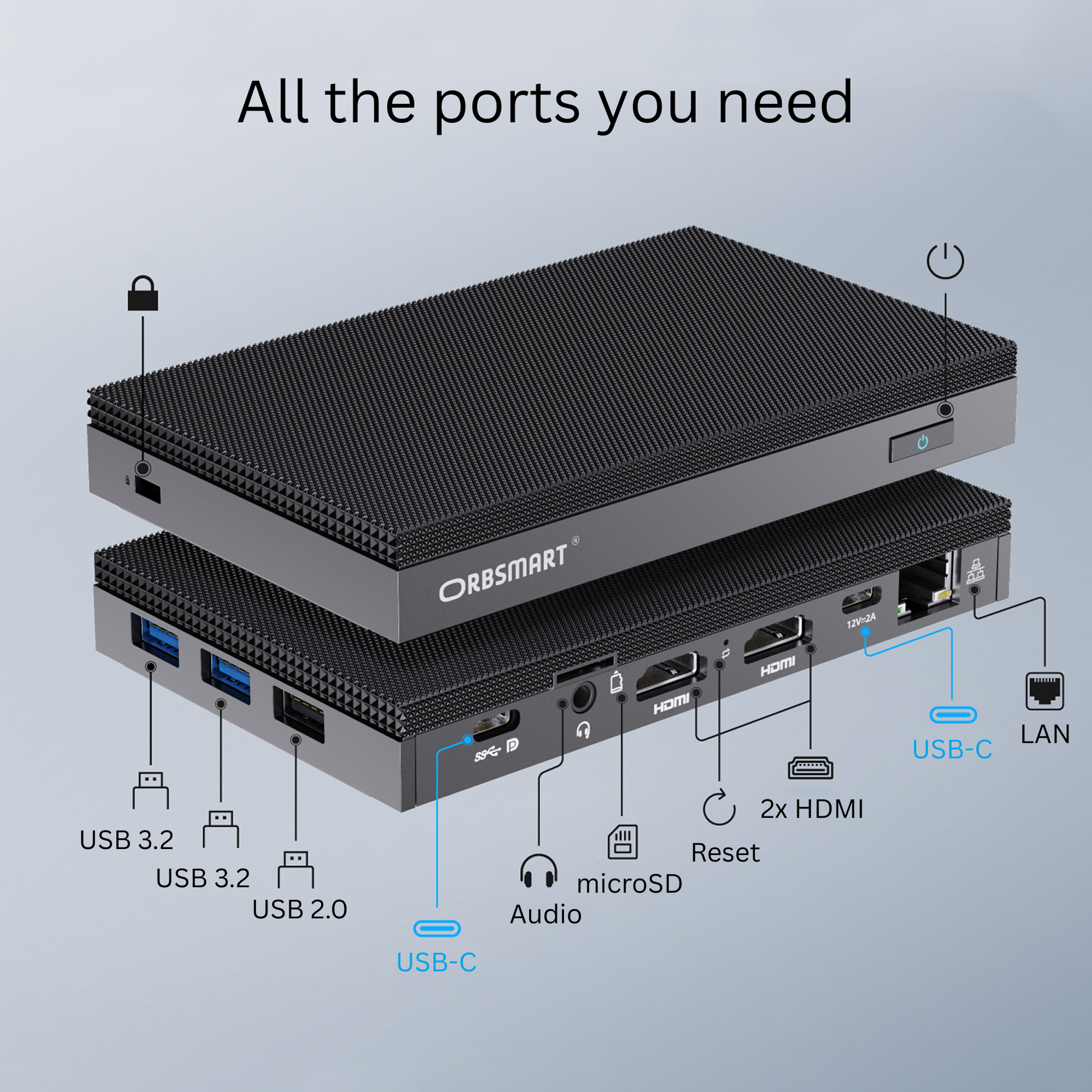

| Connections | 2x USB 3.2 Gen 2 (Type-A), 1x USB 2.0 (Type-A), 1x USB-C 3.2 (Data/Power/Display), 1x RJ45 LAN, 1x 3.5mm Audio, Kensington Lock |
| Pro Features | 24/7 Continuous Operation, Autostart, WOL, PXE Boot, RTC Wake |

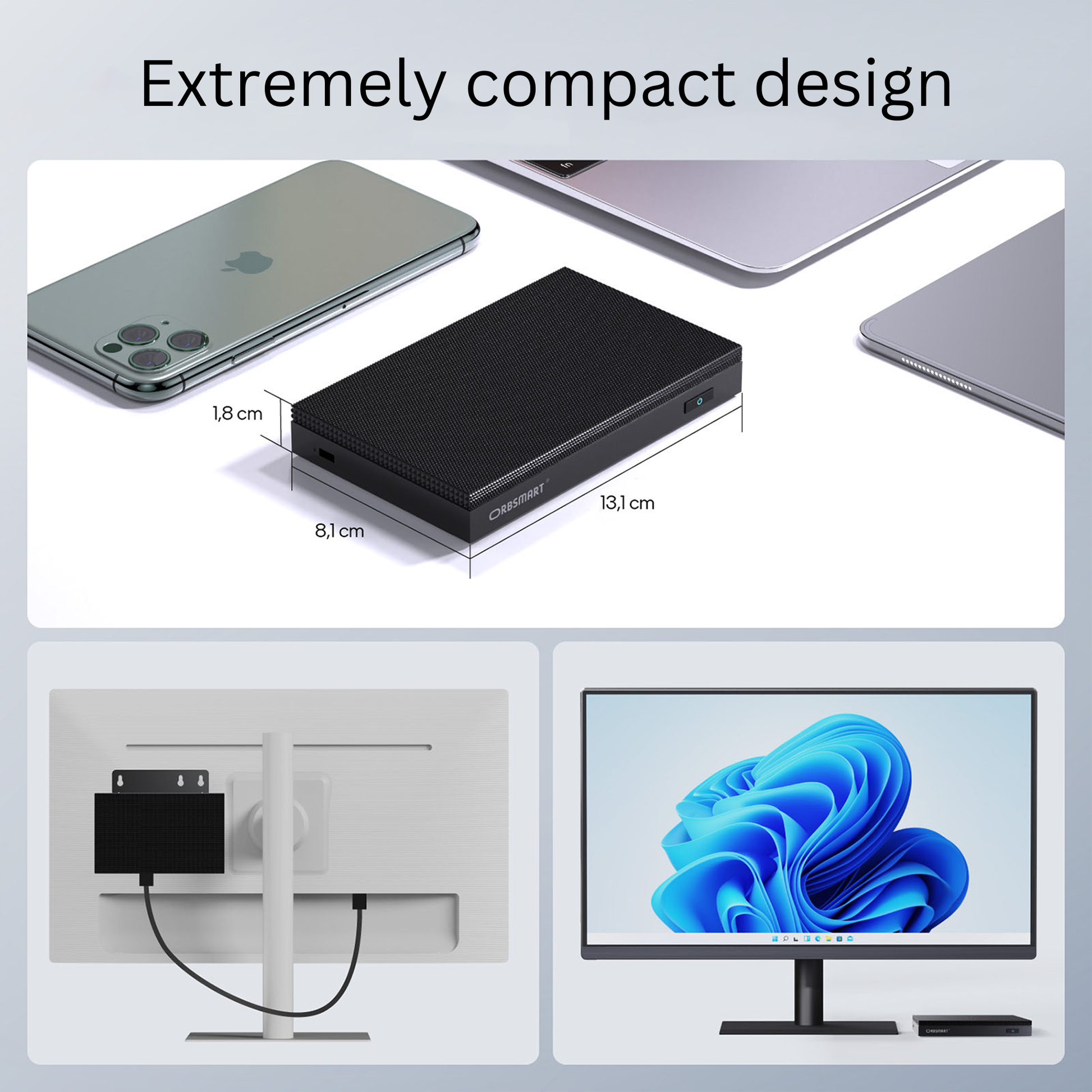

| Dimensions / Weight | 13 x 8.1 x 1.8 cm / approx. 190g |
| Package Contents | Orbsmart AW-16L, Power Adapter, HDMI Cable, VESA Mount, Manual |
Frequently Asked Questions (FAQ)
Is the AW-16L suitable for 24/7 continuous operation?
Yes, absolutely. Thanks to its high-quality components and fanless design, the Orbsmart AW-16L is explicitly designed and approved for reliable 24/7 continuous operation.
Does the AW-16L support features like Autostart, WOL, or PXE?
Yes. In the BIOS/UEFI, you can enable Autostart (auto power on when power is supplied), Wake-on-LAN (WOL), PXE/iPXE Boot (network boot), and RTC Wake-up (scheduled power on).
How many monitors can I connect simultaneously?
You can operate up to three 4K monitors simultaneously (Triple-Display) via the two HDMI 2.0 ports and the USB-C 3.2 port (DisplayPort function).
Can I upgrade the storage?

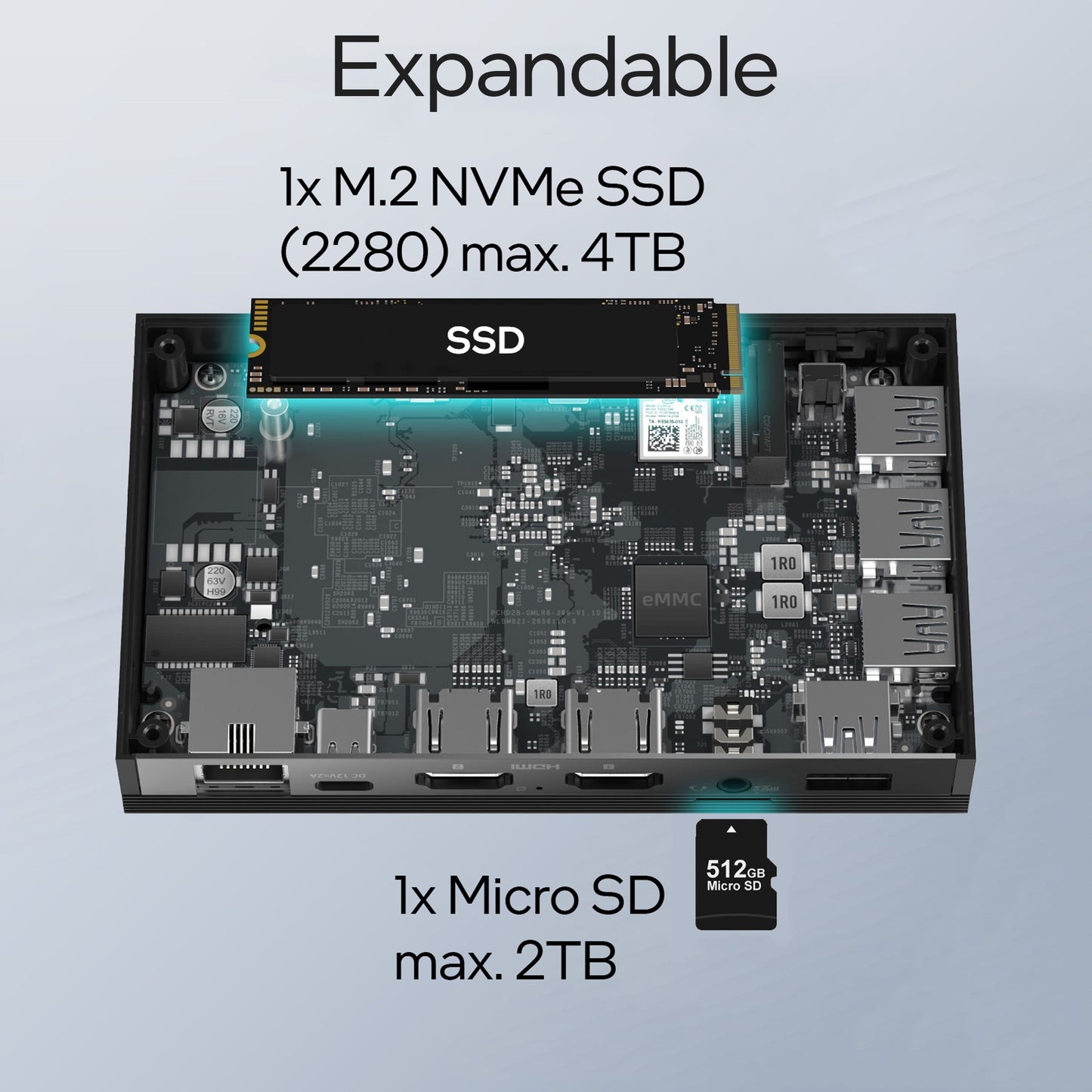

The LPDDR4X RAM is soldered. On the variant with 256GB eMMC storage, you can easily install an additional M.2 NVMe SSD (Type 2280) up to 4TB via a flap on the bottom.
Do you offer terms for commercial customers?
Yes, we offer special conditions for commercial customers, educational institutions, and public authorities. Simply contact us via our form.
