The Orbsmart AW-15L is a mini computer in an extremely compact design based on Windows 11. The fanless Intel Quad Core N100 "Alder Lake" processor offers enough power even for complex programs and tasks. The AW-15L can be used universally for many areas of application, e.g. as an office PC, media center or streaming PC or in the professional sector as a thin client or workstation.
Key Features:
- Can be used flexibly as an energy-saving office computer, desktop PC or streaming media player
- Extremely compact, fanless case including M.2 NVMe SSD slot / Autostart + WOL + PXE boot + RTC function
- Full Windows 11 Professional (64-bit) operating system pre-installed / up to three monitors can be connected
- Intel Quad Core "Alder Lake" N100 processor / 8/16GB LPDDR4 RAM / 256/512GB storage
- Integrated WIFI 6 (WLAN-AX) dual-band 2.4/5GHz / Bluetooth 5.2 / Gigabit LAN

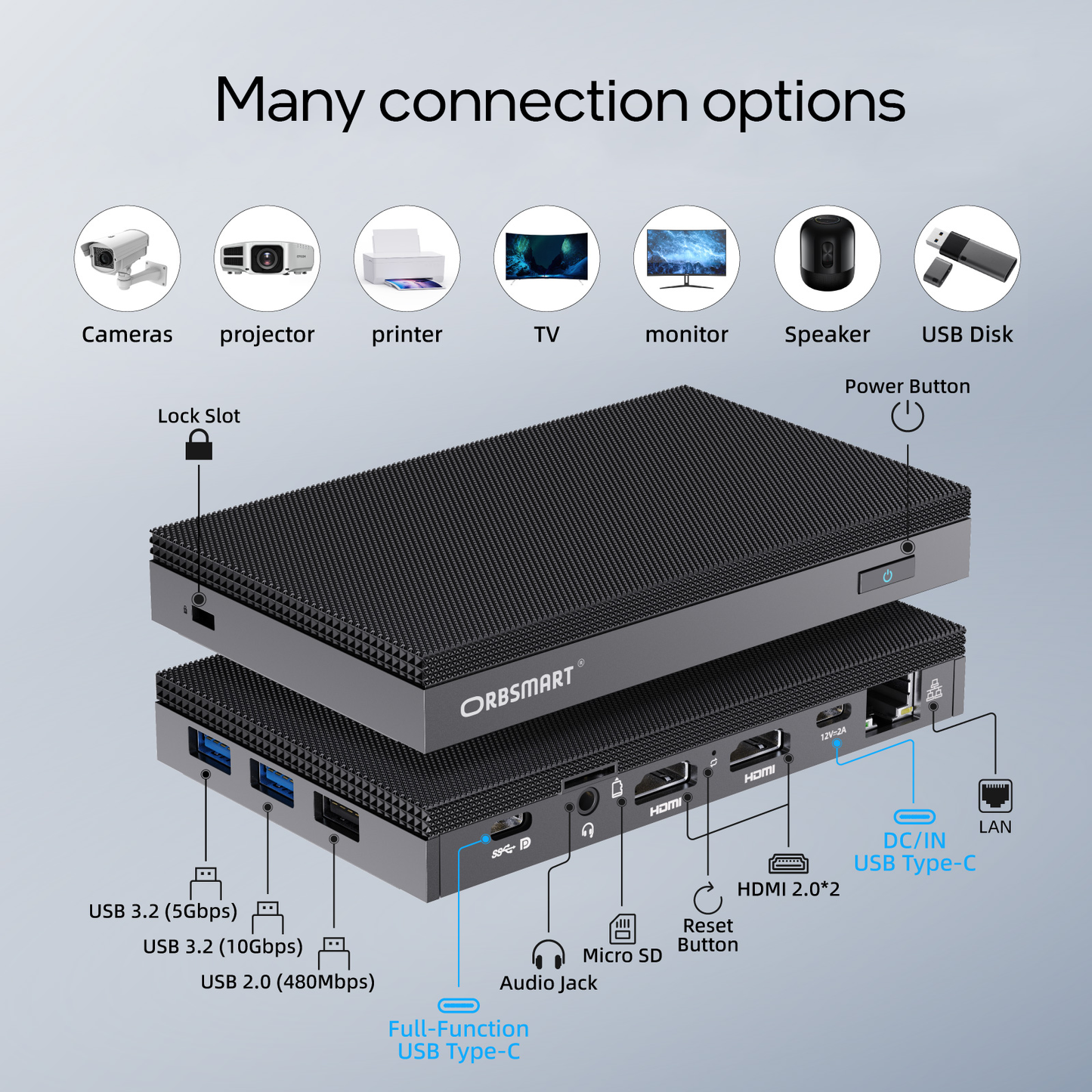

- 2x HDMI 2.0, 2x USB 3.2 Gen 2, 1x USB 2.0, 1x USB-C 3.2 (PD 3.0 Support / Data + Power / DP 1.4), 1x 3.5mm audio
Fanless - robust - energy efficient
The Orbsmart AW-15L is a Windows 11 mini PC with extremely compact dimensions (13 x 8.1 x 1.8 cm) and fits practically in your pocket. The housing is of high quality and the passive and completely fanless cooling enables absolutely silent operation. The power consumption is only a few watts even under full load.
Intel Inside
The AW-15L uses the latest Intel chip generation "Alder Lake-N" with the powerful quad-core Intel™ N100 processor (burst frequency: 3.40 GHz) plus 8 or 16GB DDR4 RAM. The performance offers more than enough power reserves even for demanding office applications, surfing or smaller games. Try it out for yourself! You also have 256 or 512GB of internal memory available.
Windows 11
The highlight: a full Windows 11 Professional (64-bit) version is already pre-installed as the operating system. Turn any monitor or TV into a complete PC with this Windows Mini PC. All programs supported by Windows 11 such as Microsoft Office, Teams, KODI, VLC, TeamViewer, Skype & Co can be installed without any problems. The AW-15L is also ideal as a streaming PC.
High versatility
This mini computer is extremely versatile! Thanks to Windows 11, there are almost no limits to the possible uses: ideal as an office PC (Microsoft Office, Zoom, Skype), streaming PC (YouTube, Prime Video, Netflix, Skygo, DAZN, Disney+ & Co.), media player (KODI Mediacenter, PLEX etc.) or in the professional sector for companies in continuous operation (display system/digital signage, thin client, automation, workstation, server).
4K Ultra-HD
The Orbsmart Windows computer supports resolutions up to 2160p (60Hz) thanks to the two integrated HDMI™ 2.0 ports. Enjoy streaming services, videos or images in ultra-high resolution quality - you don't need to buy an additional computer.
Flexibly expandable
Another highlight in the Orbsmart AW-15L: an M.2 NVMe SSD 2280 (max. 4TB) can be installed quickly and easily via the base plate. This means that the storage space can be expanded in a space-saving manner without an additional external USB hard drive. The microSD slot supports cards up to 2TB.
Triple Display
Despite its extremely compact design, the AW-15L has two full-fledged HDMI ports built into the housing (an HDMI cable is included in delivery). Additionally, a third monitor can be connected via USB-C (DisplayPort over USB-C). This means that up to three 4K monitors can be used for display at the same time.
Full-fledged USB-C
Another highlight in the AW-15L is the integrated USB 3.2 Type-C port. In addition to fast data transfer, this also offers the option of connecting a monitor (max. 4K@60Hz) and simultaneously transmitting power (PD 3.0/ 12~18V) bidirectionally. In addition, three full-fledged USB ports are freely available. In principle, any mouse/keyboard (e.g. Orbsmart AM-2), air mouse (e.g. Orbsmart WA-1), USB stick/hard drive or DVD/BD drive can be connected without any problems.
High Connectivity
The integrated WLAN antenna (dual band 2.4/5 GHz) with WIFI 6 / WLAN-AX standard offers a high range and data rates. Additional devices (e.g. mouse/keyboard, headset, etc.) can be connected using wireless Bluetooth 5.2 technology. Alternatively, the Gigabit LAN connection offers a stable connection to your router or home network.
TV mount included
Ready to go: the AW-15L offers a wide range of accessories. In addition to an HDMI 2.0 cable, EU power supply, thermal pad (for an M.2 SSD) and German/English manual, a mount for a TV/monitor is also included in the delivery.
Scope of delivery:
- Orbsmart AW-15L
- HDMI cable
- power adapter
- TV mount
- thermal pad
- Operating instructions (German/English)
