Discover the Orbsmart AW-15, the fanless all-rounder among Mini PCs. Equipped with an efficient Intel N100 processor and Windows 11 Pro, it is the perfect, silent solution for the office and home office. Its greatest strength is its unparalleled connectivity: run up to three monitors simultaneously via HDMI, DisplayPort & VGA. Ideal for 24/7 continuous operation and maximum compatibility.
Top Features of the AW-15
- ✔
Maximum Monitor Variety: The only Mini PC with 3 outputs including HDMI, DisplayPort, and VGA for highest compatibility.
- ✔
Absolutely Silent: Perfectly suited for noise-sensitive environments thanks to sophisticated passive cooling.
- ✔
Ultra-Fast 2.5-Gigabit LAN: Equipped with a future-proof 2.5G-LAN port for the highest network speeds.
- ✔
Certified for 24/7 Operation: Designed for reliable round-the-clock use in professional scenarios.
- ✔
Windows 11 Pro & Wi-Fi 6: Includes professional operating system and the latest WLAN standard.
Productivity on Three Monitors
The AW-15 is a true multi-display talent. Operate up to three monitors simultaneously and expand your desktop for maximum multitasking. Thanks to HDMI 2.0, DisplayPort 1.2, and VGA, you can effortlessly connect modern 4K displays and older monitors or projectors.
Absolutely Silent Operation
Focused work without distractions. The Orbsmart AW-15 features a sophisticated passive cooling system without mechanical fans. This guarantees completely silent operation at all times, regardless of the load – perfect for offices, recording studios, or the living room.
Efficient & Powerful
Inside the AW-15, the modern Intel N100 Quad-Core processor along with 16GB DDR4 RAM ensures snappy performance. The fast 512GB SSD provides short loading times. Ideal for all common office applications, browsing, 4K media playback, and multitasking.
Ultra-Fast Network
The AW-15 is equipped with a 2.5-Gigabit LAN port, offering more than double the speed of conventional Gigabit LAN. The latest Wi-Fi 6 for lightning-fast WLAN, Bluetooth 5.2, and fast USB 3.1 ports complete the future-proof setup.
Ready for Professional Use
Designed for reliability: The AW-15 is approved for 24/7 continuous operation and supports important business features like Autostart on power supply, Wake-on-LAN (WOL), and PXE Boot directly in the BIOS/UEFI. Ideal for digital signage, POS systems, or as an industrial PC.
The AW-15: Who is it the ideal solution for?
The AW-15 is the top choice for office and home office users who need an absolutely silent PC with maximum monitor compatibility (incl. VGA & DP) and fast 2.5G-LAN. It is the reliable all-rounder for productive work in any environment.
Need even more CPU performance? Take a look at the Orbsmart AW-16L.
Detailed Technical Specifications of the AW-15
| Operating System | Windows 11 Professional (64-bit) |
| CPU | Quadcore Intel "Alder Lake-N" N100 (@0.80 GHz / Burst freq: 3.40 GHz) |
| GPU | Intel UHD Graphics XE |
| RAM | 16GB DDR4-RAM (SO-DIMM) |
| Internal Storage | 512GB M.2 SSD (2280) |
| Storage Expansion | 1x M.2 SSD (2242) up to 4TB, microSD-Slot |
| Cooling | Passive (fanless) |
| Network | 2.5-Gigabit-LAN (Realtek), WIFI 6, Bluetooth 5.2 |
| Video Outputs | 1x HDMI 2.0 (4K@60Hz), 1x DisplayPort 1.2 (4K@60Hz), 1x VGA |
| Audio Output | HDMI, DisplayPort, 3.5mm Jack |
| Connections | 1x USB 3.1 (Gen1), 1x USB 3.1 Type-C (Gen1), 2x USB 2.0, 1x RJ45 LAN, 1x 3.5mm Audio, microSD-Slot, Kensington Lock |
| Pro Features | 24/7 Continuous Operation, Autostart, WOL, PXE Boot, RTC Wake |
| Dimensions / Weight | 13 x 13 x 4 cm / approx. 450g |

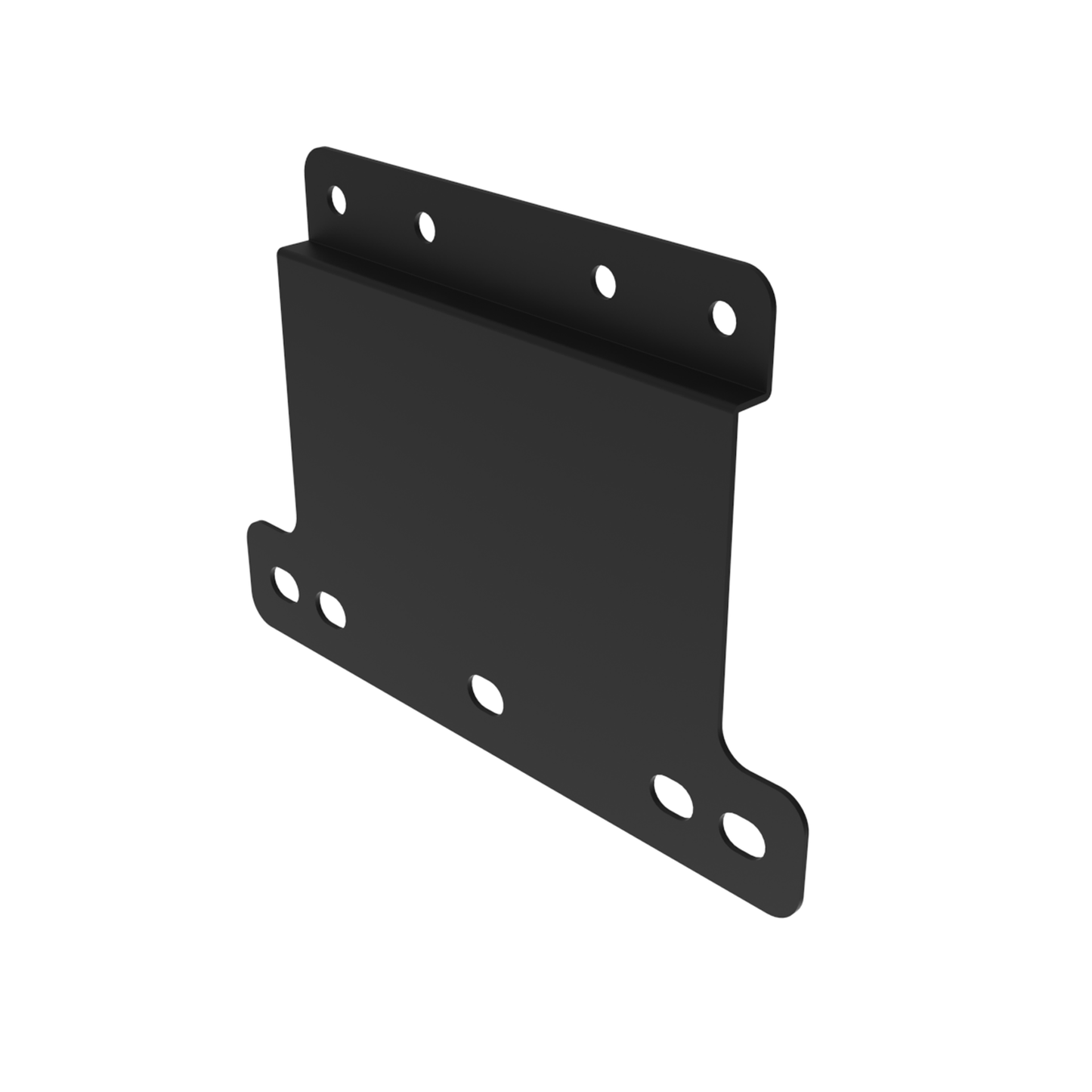

| Package Contents | Orbsmart AW-15, Power Adapter, HDMI Cable, VESA Mount, Manual |
Frequently Asked Questions (FAQ) about the AW-15
Is the AW-15 suitable for 24/7 continuous operation?
Yes, absolutely. Thanks to its high-quality components and fanless design, the Orbsmart AW-15 is explicitly designed and approved for reliable 24/7 continuous operation. This makes it the perfect choice for professional applications like digital signage or as a reliable office PC.
Does the AW-15 support professional features like Autostart, WOL, or PXE?
Yes. In the BIOS/UEFI of the AW-15, you can enable advanced features crucial for professional use. These include Autostart (automatic power-on when power is supplied), Wake-on-LAN (WOL), PXE/iPXE Boot (network boot), and RTC Wake-up (scheduled power-on).
How many monitors can I connect simultaneously?
You can operate up to three monitors simultaneously. The AW-15 is extremely flexible and provides an HDMI 2.0, a DisplayPort 1.2, and even a classic VGA port for this purpose. Perfect for multi-monitor setups, even with older screens.
Can I upgrade the RAM or SSD later?
Yes, both are possible. The DDR4 RAM is installed as a SO-DIMM module and can be replaced. The installed M.2 SSD (Type 2280) is also accessible and can be swapped for a larger model (up to 4TB) if needed. An additional M.2 SSD (2242) slot is free.
